SCREW Dowel Screw
Page Information
Main Text

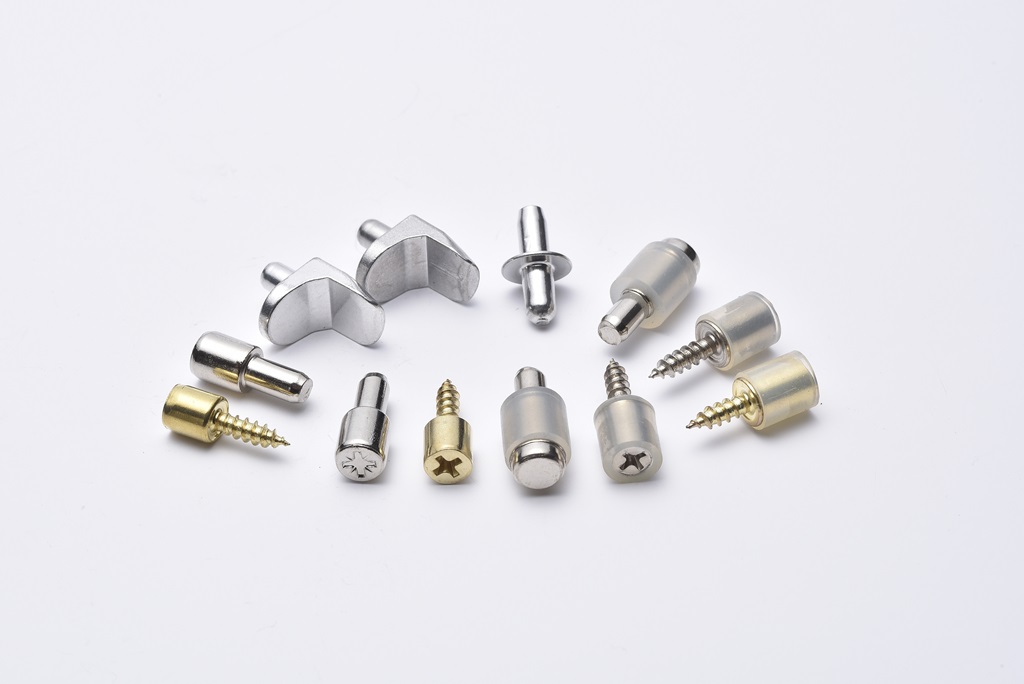

| Order Number | Dowel Screw | purpose of use | ||||
|---|---|---|---|---|---|---|
| Head shape | standard | color | DRIVE | POINT | ||
| Dowel – 1 | type1 screw dowel | ∮3.5×11.50mm | nickel/natural/Gold | PH2 | SHARP | Sink, shelf support piece inside furniture ①Type 1 dowel : Fastening without boring. ②Pin dowel : Insert after boring operation to fit pin outer diameter |
| Dowel – 2 | type1 glass dowel | ∮3.5×11.50mm | nickel/Gold | PH2 | SHARP | |
| Dowel – 3 | O/A Dowel | ∮4.75x17mm | nickel | |||
| Dowel – 4 | Pin Dowel | ∮4.75x10mm | nickel | |||
| Dowel – 5 | Pin Dowel | ∮5.0×8.0mm | nickel | |||
| Dowel – 6 | Pin Dowel | ∮5.0x10mm | nickel/natural | |||
| Dowel – 7 | Pin Dowel(big) | ∮5.5x10mm | nickel | |||
| Dowel – 8 | type1 screw dowel | ∮5.5x12mm | nickel/Gold | PH2 | SHARP | |
| Dowel – 9 | type1 glass dowel | ∮5.5x12mm | nickel/Gold | PH2 | SHARP | |
| Dowel – 10 | O/A Dowel | ∮5.0x17mm | nickel | |||
| Dowel – 11 | O/A Dowel | ∮4.8x20mm | AL | |||
| Dowel – 12 | Hanssem Dowel | ∮5.0x17mm | AL | |||
| Dowel – 13 | Hanssem Dowel | ∮5.5x22mm | AL | |||
* Separate colors are available upon request.
